In this notebook, we demonstrate searching for and accessing ICESat-2 data using the Python earthaccess package, and reading and visualizing the data using xarray and pandas. We also use matplotlib and cartopy to produce a map of search results.
earthaccess is a community developed open source Python package to streamline programmatic search and access for NASA data archives. Users can find data sets and data granules, and either download or “stream” NASA data in as little as three “lines of code”, regardless of whether users are working in the cloud or on a local machine. The earthaccess package handles authentication for NASA Earthdata Login and the AWS hosted NASA Earthdata cloud. All you need is an Earthdata Login.
xarray has become the go to Python package for Earth Data Science. With v2024.10.0, xarray can be used to read and work with data stored hiearchical file structures like the HDF5 file format used for ICESat-2, using the DataTree structure. We use xarray.DataTree to read and explore ICESat-2 files.
Although xarray could be used to work with the ICESat-2 data, the nested-group structure can be a little cumbersome. So we create a pandas.DataFrame object for a subset of data to make plotting easier.
Import libraries
As with all Python, we import the libraries we will use.
# Search for dataimport earthaccess# Read and work with dataimport xarray as xrimport pandas as pd# To plot resultsimport matplotlib.pyplot as pltfrom matplotlib.colors import ListedColormap, BoundaryNormfrom matplotlib.lines import Line2D# To plot map of resultsimport cartopyimport cartopy.crs as ccrsimport cartopy.feature as cfeature# Check package versions: you may want to update if you have older versions# See README.mdprint(f"earthaccess: {earthaccess.__version__}")print(f"xarray: {xr.__version__}")print(f"cartopy: {cartopy.__version__}")
/Users/mibe9765/miniforge3/envs/nsidc-tutorial-icesat2-apps/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
Although you do not need an Earthdata login to search for NASA data, you do need one to access that data. It is better just to login at the start of a workflow so you don’t forget.
You will need an Earthdata login. If you don’t have one, you can register for one, for free, here.
earthaccess will prompt for your Earthdata login username and password. You can also set up a .netrc file or environment variables. earthaccess will search for these alternatives before prompting for a username and login. See the earthaccessdocumentation to lean how to do this.
auth = earthaccess.login()
Search for ICESat-2 Related Datasets
Before we search for data, we want to know what ICESat-2 datasets and what versions of these datasets are available. We will also need to know the short-name or concept-id of the ICESat-2 dataset we want to use.
The short-name can be found on the dataset landing pages for products or we can search for it.
To search for datasets (or Collections as NASA calls them), we use the search_datasets method. This allows searches by keywords, platform, time range, spatial extent, version, and whether data are hosted in the cloud or still archived at a NASA DAAC.
Here, we will do a simple search using platform for ICESat-2 data. The platform and keyword searches are not case sensitive. We’ll add downloadable=True and cloud_hosted=True to further refine the search.
search_datasets returns a Python List of data collections. We can find how many datasets were found by getting the length of that list using len.
len(results)
47
There are 47 datasets. Because results is a list, we can access any element of that list by giving an index. Here, we’ll access the first element (0). Just change the index to see a different dataset.
Each data collection has a summary method that returns a Python dictionary containing short-name, concept-id, and version, along with information about the file type and links to get the data. The file links are used by earthaccess, so we don’t need to worry about these too much.
We also want to be able to see all the other datasets available. Because there are a lot of datasets, we’ll just get the short-name and version.
We’ll use a Python list comprehension, which is like a for-loop, to extract the information we want. We use the sorted function to sort the list into alphabetical order using the short-name (the first element of the tuple) as a key.
sorted( [(r.summary()["short-name"], r.summary()["version"]) for r in results], key=lambda x: x[0])
The datasets with short-names that start with ATL are the standard ICESat-2 products. Some of these short-names have QL at the end. These are quick-look products. Also, most products have two versions. This is because the two most recent versions are archived.
Search for ATL07 data granules
Now that we know the product short_name, we can search for data. Here, I am interested in granules that were collected during the validation campaign. I know there was an underflight of ICESat-2 over sea ice on 26 July 2022, so we will search for ATL07 data for that date.
To search for data, we use earthaccess.search_data. There are many ways to construct a search. Some examples are below.
Currently, processing of ATL07 and ATL10 have been halted because of some issues with input data, so only version 006 is available.
By temporal range
Searching using the temporal filter with short-name and version will return all data granules within the time range specified.
The temporal keyword expects a tuple with two date-like variables. These can be strings following the format YYYY-MM-DD or datetime objects. Because we only want one day of data, the dates are the same.
As with the datasets results, search_data returns a Python List so we can find the number of granules returned using len.
In a Jupyter notebook, we can get a rendering of information about a single granule, including some thumbnails of the location and data just by running a code-cell with one granule result.
We can list those granules in a similar way as we did with the results from search_datasets. We need to know a little about the structure of the granule results. Here, we print the list of granule file names.
We can further refine the search by adding a bounding_box. The coordinates of the bounding box are latitudes and longitudes in WGS84. The bounding_box is a tuple with (min_lon, min_lat, max_lon, max_lat).
Here, we search for ATL07 files in the Arctic.
granules = earthaccess.search_data( short_name="ATL07", temporal=("2022-07-26","2022-07-26"), version="006", bounding_box=(-180., 60., 180., 90.), # To restrict to N.Hem. only)len(granules)
30
Search By Polygon

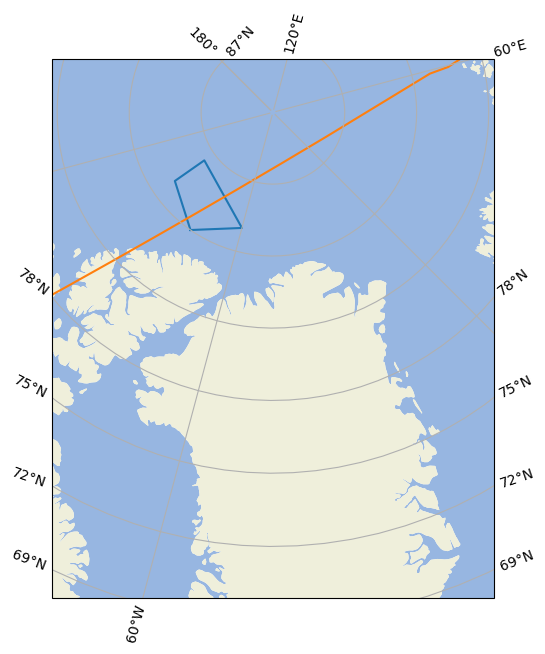

Searching by bounding-box does not always make sense in the Arctic, where meridians are converging. Defining a polygon might be more useful.
The polygon argument is a Python List of longitude, latitude pairs, with the last pair of points matching the first point. For example:
ICESat-2 data are often referenced by Reference Ground Tracks. Reference Grounds Tracks (RGT) are the imaginary line traced on the surface of the Earth as ICESat-2 passes overhead. There are 1387 RGT. Each RGT is followed once in every 91-day orbit cycle. RGT in different cycles are distinguished by a two digit cycle number. This information is in the file metadata and also encoded in the file name.
where tttt is the four-digit RGT and cc is the cycle number.
Below, we filter the granules to get RGT 0531 by spliting the filename on _ and then looking for the third group of characters (index 2) that starts with 0531.
g = [g for g in granules if g["umm"]['GranuleUR'].split('_')[2].startswith('0531')]g
---------------------------------------------------------------------------IndexError Traceback (most recent call last)
CellIn[16], line 1----> 1 g = [g for g in granules ifg["umm"]['GranuleUR'].split('_')[2].startswith('0531')]
2 g
IndexError: list index out of range
Search by Granule File Name
We can also search for a particular granule. We still need to provide short_name or concept_id becase CMR does not allow searching across collections.
We can either download data to our local machine or stream data directly into memory. Streaming data works well in the cloud.
Below we download data. To stream data, we use the earthaccess.open method.
files = earthaccess.open(granules)
For earthaccess.download, files are downloaded to our current working directory or the directory specified in local_path. A list of the paths to these local files is returned.
If we use earthaccess.open, files is a list of file-like objects.
We’ll use xarray.open_datatree to open the file. Whether we use earthaccess.download or earthaccess.open, the list of file paths or file-like objects in files can be passed to xarray file readers. Currently, xarray.open_datatree will only open a single file, so we have to index files.
files[0]
'data/ATL07-01_20220726161113_05311601_006_02.h5'

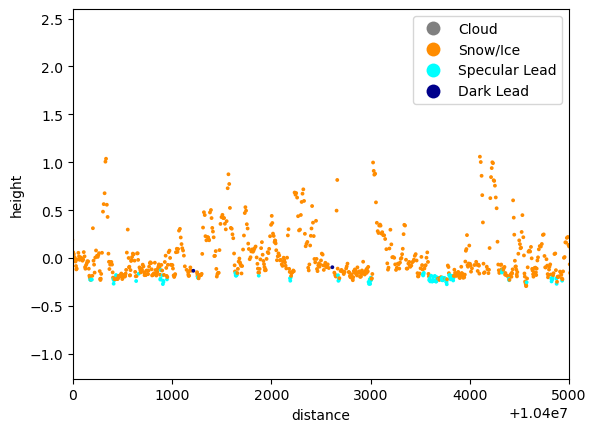

decode_timedelta=True is set so that we don’t get a warning.
